Features
- Heavy Duty Cast Iron Single / Two / Six Van Non Clog imeppller.
- Heavy Duty C.I. Volute type casing for maximum efficiency
- Designed for continuous Operation.
- Heavy Duty Motor design
- Portable and fixed installation.
- Thermal Overloaded, moisture control as per requirement.
Technical Data
- Flow: 160 to 7000 lpm.
- Max. Head: 55mt.
- Protection IP 68
- Insulation Class “F”
- Connection: DOL / Star –Delta /ATS.
- Temperature: Ambient
- Motor: Two / Four Pole Squirrel Cage Continuous duty induction motor.
- Rated Speed: 2900 / 1450 rpm.
Power Range: 1.0 hp to 60 h.p.
Material of Construction:
- Motor Body: C.I. IS 210 FG 260 / S.S. 202
- Pump Casing: C.I. IS 210 FG 260
- Shaft: S.S. 410
- Impeller: C.I. IS 210 FG 260 or As per material request.
- SIC v/s SIC Mechanical Seal
- S.S. Models Available as per request.

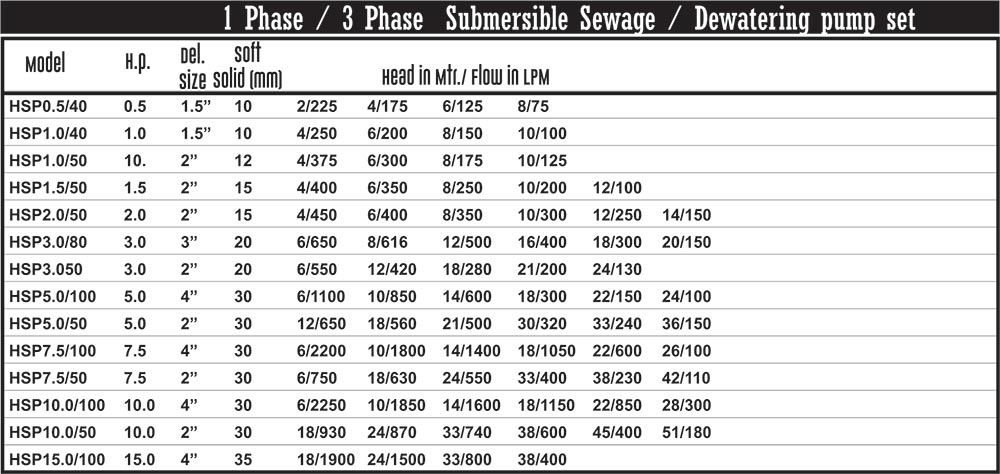

Performance Table
