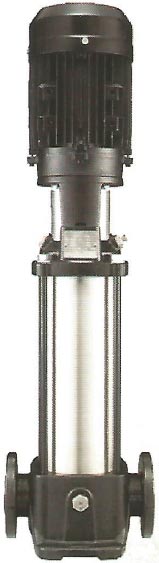

Vertical Multistage centrifugal pump is manufactured by adopting advanced technology. The best advantage is that of water-power model design, high operating efficiency and power saving design. The product is dependable, good in appearance, small, lightweight and it is easy to transport and install. Stage construction with stainless steel impellers, chamber and pressure casing. Pump stub shaft and motor shaft of the IEC-Standards. Motor is directly close coupled. Pumps are equipped with a cartridge type mechanical seal for easy maintenance.
Typical Application:
- High Pressure for reverse osmosis plant
- Water supply for boiler or condensate system
- Industrial Circulating System and processing system
- High Operating efficiency applications.
- Industrial building, cleaning and other washing work.
- Pressure boosting
Working Conditions
- Hot and cold clean, non flammable, non-explosive liquid without solid grain and fiber
- Normal Temperature: 0 to 45 C
- Hot Water: +70 to 120 C
- Ambient Temperature up to +40 C
- Minimum inlet pressure: According to NSH curve + min safe delivery 0.5m water head
Motor Specification
Power Rating |
1.1 to 3 kw |
Speed |
2900 RPM |
Frequency |
50 Hz |
Connection |
Single phase 220-240 V & Three phase 415 V |
Type of Duty |
S1 (Continuous) |
Pump Specification
Flow Range |
4 – 1 m3 / hr |
Head Rang |
30 – 190 m3 / hr |
Operating Liquid temperature |
Upto + 120 C |
Seal Type |
Cartridge EPDM / Viton |
Pump MoC |
Cast Iron, SS 304 |
Performance Table
Model |
Power |
|
M3/hr |
1 |
1.5 |
2 |
2.5 |
3 |
3.4 |
4 |
|
KW |
HP |
Ips |
0.27 |
0.41 |
0.55 |
0.69 |
|
|
|
MVMO-2/09TR |
1.1 |
1.5 |
Head |
80 |
74.5 |
67 |
62 |
52.5 |
45 |
37 |
MVMP-2/11TR |
1.1 |
1.5 |
98 |
90 |
83 |
73.5 |
62.5 |
50 |
37.5 |
|
MVMP-2/13TR |
1.5 |
2.0 |
117 |
109 |
100 |
87.5 |
72.5 |
57.5 |
42 |
|
MVMP-2/15TR |
1.5 |
2.0 |
130 |
122.5 |
112.5 |
100 |
85 |
67.5 |
47.5 |
|
MVMP-2/18TR |
2.2 |
3.0 |
161 |
153.5 |
140 |
126 |
100 |
68 |
63 |
|
MVMP-2/22TR |
2.2 |
3.0 |
187 |
180 |
165 |
150 |
121 |
100 |
70 |
