Features:
- Excellent quick qutomatic priming action without foot valve up to 8 mtrs.
- Automatic air release during priming.
- Back pull design, so easy maintance without disturbing pipe lines.
- Dynamically balanced rotating parts ensure less vibrations.
- Better efficiency because of good hydraulic design
- Non-clog impellers to handle solid particles up to 16 mm.
- Minimum parts, fast repairing at low cost, Also pump is available at economical rate.
- Available in Bare, Coupled, Monoblac, Belt driven & Engine driven version.
- Also offered pump with trolley / trailer to move it from one place to another.
- Graded casting & perfect machining of all components ensure long life.
- ABLE TO OFFER PUMPS WITH CLOSED IMPELLERS FOR CLEAR LIQUIDS.
- Monoblac pumps can be able to with stand with wide voltage fluctuations.
- Less expensive & easily available spares.
- Pumps can be fitted with mechanical seal as per customer's requirements.
Application:
- Public utilities: For pumping muddy water, sewage, polluted liquids, solid and in swimming pool.
- Dewatering Basements, Trenches, Construction sites.
- Onboard shift, as bildge, for desk wash & engine cooling.
- Industrial : Petroleum product, Ceramic product,Chemicals, Thermal plants etc.
- Tiles & Marble factories, effluent plants.
- Marine Works: Handling liquids from docs, ports and vessels etc.
- Salvage Operations: Fire flighting.
- Mobile Machinery: Cooing water for marine engines and shovels.
- Any application where priming is to be avoided.

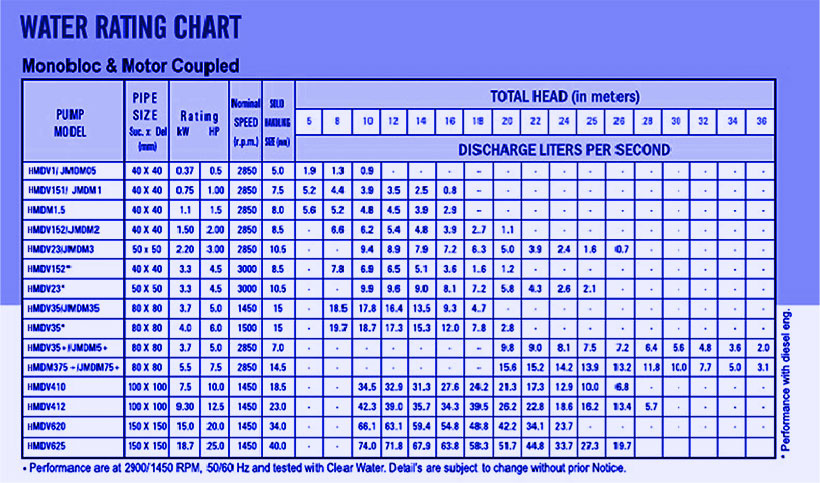

Water Rating Chart:
Note : Special Pumps for Higher Capacity and Head available on request.

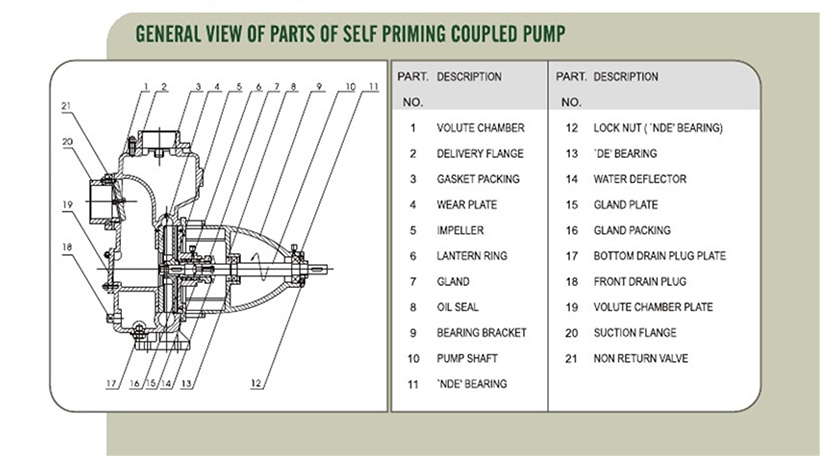

Material of Construction:
- Casing: Cast iron / SS - 304 (CF - 8) SS - 316 (CF - 8M)
- Impeller: Cast iron / CF - 8 / CF -8m / Bronze
- Diffuser: Cast iron / CF - 8 CF - 8 M / Bronze
- Shaft: EN- 8 / SS - 304 / SS - 316
- Sleeve: SS - 410 / SS - 304 / SS - 316 / Broze
- Bearing Housing: Cast iron
- Sealing : TIWA / carbon - Ceramic Seal / TC-TC Seal
Features :
- Simple Construction having buck-pullout design.
- Easy inspection of impeller.
- Quick self-priming action without foot-valve up to 7.5 m .
- Pumping large size diameter solid in suspension.
- Available in mono-Block & Bare-shaft design for v-belt/couple set version.
- Various options for material of construction like - AISLSs304 , AISI316 , Bronze & Sealing.
- Option for separate volute design and replaceable wear plate gland plate for quick, low - cost & easy maintainance.
