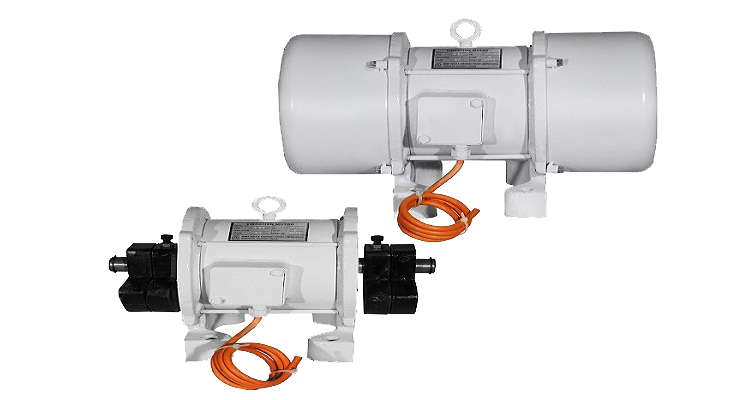

Jigar Enterprise has a wide range of Vibrator Motors (unbalanced) to meet the requirement of various industries wherein material handling plays a major role. These vibrators help to empty, dose, convey, loosen, test, clean, screen, compact, distribute, feed etc., and therefore have a very wide application in Mining, Fertilizer, Chemical, Pharmaceuticals & Food Process Industry etc. These vibrators are suitable for mounting on bin and storage silo,vibrating feeders, tables & screens and many other applications Orton Unbalance Motor Vibrator is totally enclosed, surface cooled units operating 415/440 volts, 3 phase, 50 cycles. A. C. Supply. The vibrating frequency depends on the revolutions of the rotary unit and can be chosen from four rangesavailable viz., : 3000, 1500, 1000, 750 vibrations per minute. The Centrifugal force can be adjusted from Zero to Maximum by manipulating the relative positions of the eccentric weights provided on either side of the shaft. Various models are available giving a wide choice of Centrifugal force, frequency of vibration, mounting position, Insulation etc. The customer is therefore assured of getting the most suitable vibrator to meet his requirements.
When used as a single unit, they impact circular vibrations. If directional vibrations are needed, two vibrators running in the opposite direction should be used. Vibro Motor are use in various kind of Industries such as Food processing machinery, construction machinery, Pharmasuticals Machinery, Cement Plantener , Steel Plants, machinery like Vibro Screeners, Vibro Classifier, Vibro De-Stoners, Vibro Seprators , Vibratory Tables Etc.
Salient Features :
- Sturdy and robust construction.
- Totally enclosed dirt & dust proof construction.
- Amplitude of vibration can be controlled.
- Heavy duty cylindrical roller bearings for long and trouble free operation.
- Low noise as compared to Electromagnetic Vibrators.
- Centrifugal Force can be adjusted from zero to Maximum.
- Low maintenance due to absence of belts, pulleys, chains sprockets etc.
Construction :
The motor vibrator motor has removable end shields and of robust design and the made out of graded cast iron. The material for shaft is alloy steel of ample size to transmit the rated vibratory forces. The ball / roller bearings used are heavy duty to give a long trouble free performance. The design of these motors are aimed at obtained MAXIMUM VIBRATIONS WITH MINIMUM POWER.
The protection class is IP 55 {Totally enclosed construction). The windings consist of super enamelled copper wires, slot and phase insulation, varnish Etc. as specified for F class, as required.
Specifications :
- Frame Ms-Cast Body (Heavy Duty).
- Winding Class E, F, H Insulation type.
- Weight = Approx 40 Kg in 0.5 HP & 1.0 HP.
- Standard Ball bearing series are over dimensional in relation to the high speed and stain of strong load to offer increased reliability.
- Drive shaft is made of EN 8 Material of tested quality in order to with stain high torque depending on centrifugal force is achieved.
- Field operation temperature : Vibratory motor are design to work from -300 to + 500 Temperature continuously at maximum centrifugal force
Description :
| Sizes & RPM | Working Moment (Kg/cm) | Centrifugal Force Newton | Vibrating Equipment Mass (Kgs.) |
| 0.25 HP, 960 / 1440 / 2800 RPM | 40 | 6450 | 60-120 |
| 0.5 HP, 960 / 1440 / 2800 RPM | 75 | 8800 | 120-200 |
| 1.0 HP, 960 / 1440 / 2800 RPM | 95 | 11100 | 200-450 |
| 1.5 HP, 960 / 1440 / 2800 RPM | 145 | 17000 | 300-725 |
| 2.0 HP, 960 / 1440 / 2800 RPM | 235 | 27500 | 485-1210 |
| 3.0 HP, 960 / 1440 / 2800 RPM | 325 | 35000 | 690-1750 |
| 5.0 HP, 960 / 1440 / 2800 RPM | 430 | 44000 | 970-2400 |
Specifications :
| Model No | Power Input HP | A | B | Mounting Hole Dia. x Nos. Of Holes | Mounting Hole Dia. x Nos. Of Holes |
| VMFT - 025 | 0.25 | 80 | 85 | 12.5 mm x 4 nos | 350 |
| VMFT - 050 | 0.5 | 120 | 85 | 15 mm x 4 nos | 750 |
| VMFT - 100 | 1 | 140 | 108 | 17 mm x 4 nos | 1800 |
| VMFT - 200 | 2 | 152 | 130 | 21 mm x 4 nos | 3500 |
| VMFT - 300 | 3 | 152 | 180 | 25 mm x 6 nos | 4500 |
| VMFT - 500 | 5 | 248 | 170 | 25 mm x 6 nos | 5500 |
| VMFT - 750 | 7.5 | 280 | 200 | 27 mm x 6 nos | 9000 |
| VMFT - 1000 | 10 | 300 | 235 | 27 mm x 6 nos | 12000 |
Technical Specifications :
| Model No | Power Input HP | PCD | Mounting Hole Dia. x Nos. Of Holes |
| VMFT - 025 | 0.25 | 160 | 14 mm x 6 nos. |
| VMFT - 050 | 0.5 | 180 | 14 mm x 6 nos. |
| VMFT - 100 | 1 | 230 | 15 mm x 6 nos. |
| VMFT - 200 | 2 | 230 | 22 mm x 6 nos. |
| VMFT - 300 | 3 | 270 | 22 mm x 6 nos |
| VMFT - 500 | 5 | 300 | 27 mm x 6 nos |
| VMFT - 750 | 7.5 | 360 | 27 mm x 6 nos |
| VMFT - 1000 | 10 | 400 | 27 mm x 6 nos |
Vibration Motor Application Area :
- 1. In Food Processing Machinery.
- 2. In Construction Machinery.
- 3. In Pharmasuticals Machinery.
- 4. In Cement Plantener.
- 5. In Steel Plants.
- 6. In Machinery like Vibro Screeners, Vibro Classifier, Vibro De-Stoners, Vibro Seprators , Vibratory Tables.
